Cara Mengatasi Lupa Kunci-Pola-Frp Akun Google Oppo A71,Di beberapa waktu lalu,kami dapat garapan Oppo A71 Yaitu user lupa Dengan Pola-Sandi,dimana kita ketahui pada oppo generasi terbaru ini,ketika lupa Kunci/Sandi kita tidak dapat melakukan Factory Format pada Menu Recovery dikeranakan Menu Recoverynya Sendiri terkunci iyakan?😀 Artinya anda tidak dapat melakukan Format data.
Lalu Bagaimana Cara Mengatasi ini??? Disini akan kami berikan tutorialnya,bagaimana cara langkah menghapus Kunci/Pola-Frp pada Oppo A71 ini.
Menggunakan UFI Box/Mrt Dongle,bisa juga menggunakan MsmDownloadTool yang sudah dilakukan Modifikasi,agar tool ini bisa bekerja dengan sebagai mana semestinya.
MENGGUNAKAN UFI BOX
Sebelum melangkah pada tutorial,siapkan dulu bahan-bahan dibawah ini
Perlu diketahui kembali,pada Oppo A71 ini memiliki 2 Variant,yaitu Oppo A71 CPH1717 Menggunakan Chipset Mediatek dan Oppo A71 CPH1801 Menggunakan Chipset Qualcomm,untuk permasalahan Lupa Kunci-Pola-Frp pada Oppo A71 Mediatek ini sudah kami Bahas pada Cara Buka Kunci Akun Google Oppo A71 Mediatek
Setelah semua sudah siap,buka UFI BOX Letakan Firmware pada Libray pada Android Tool Box C:\UFI\Android-ToolBox\Oppo\A71\CPH1801EX_11_A.14_181015 maka Ufi akan mengextract secara otomatis File Ofp tadi.Masuk pada Mode Edl.Tekan Volume Atas dan Bawah Secara serentak sambil ditahan,lalu Tuncep pada Port Komputer menggunakan Kabel USB.sampe disini smartphone sudah Terkoneksi Port Qualcomm 9008
Pada TAB Ufi Pilih Brand-Model Oppo A71,pilih Rawprogram0,karena usernya minta ingin dilakukan flashing,ya sudah klik Flash.Lihat Gambar
Log Flashing Menggunakan Ufi Box
IMAGE_VARIANT: JAADANAZA
OEM_IMAGE_VERSION: ubuntu-121-238
Sending firehose loader... Done.
Handshaking...
[VIP] Validated Image Programming is enabled.
Sending signed DigestTable [DigestsToSign_17151_persist_no_userdata_yes.bin.mbn]... Done.
Sending ping... Done.
Sending configurations...
TargetName: 8953
MemoryName: eMMC
Version: 1
Firehose configured.
Reading phone info... Done.
Processing rawprogram0.xml
Erasing userdata... Done.
Erasing PrimaryGPT... Done.
Erasing backupgpt... Done.
Backing up download flag... Done.
Writing modem at 0x00800000 (262144 sectors)... Done.
Writing sbl1 at 0x08802400 (756 sectors)... Done.
Writing sbl1bak at 0x08882400 (756 sectors)... Done.
Writing rpm at 0x08902400 (341 sectors)... Done.
Writing rpmbak at 0x08982400 (341 sectors)... Done.
Writing tz at 0x08A02400 (3031 sectors)... Done.
Writing tzbak at 0x08C02400 (3031 sectors)... Done.
Writing devcfg at 0x08E02400 (75 sectors)... Done.
Writing devcfgbak at 0x08E42400 (75 sectors)... Done.
Writing dsp at 0x08E82400 (32768 sectors)... Done.
Writing oppostanvbk at 0x0AB82400 (20480 sectors)... Done.
Writing LOGO at 0x0B582400 (31321 sectors)... Done.
Erasing DDR... Done.
Erasing splash... Done.
Writing aboot at 0x0E000000 (1241 sectors)... Done.
Writing abootbak at 0x0E100000 (1241 sectors)... Done.
Writing boot at 0x0E200000 (24667 sectors)... Done.
Writing recovery at 0x12200000 (35135 sectors)... Done.
Erasing devinfo... Done.
Writing cache at 0x16800000 (12497 sectors)... Done.
Erasing misc... Done.
Erasing keystore... Done.
Erasing config... Done.
Erasing limits... Done.
Erasing mota... Done.
Erasing dip... Done.
Writing mdtp at 0x29980000 (26853 sectors)... Done.
Erasing syscfg... Done.
Erasing mcfg... Done.
Writing lksecapp at 0x2C000000 (113 sectors)... Done.
Writing lksecappbak at 0x2C020000 (113 sectors)... Done.
Writing cmnlib at 0x2C040000 (402 sectors)... Done.
Writing cmnlibbak at 0x2C080000 (402 sectors)... Done.
Writing cmnlib64 at 0x2C0C0000 (509 sectors)... Done.
Writing cmnlib64bak at 0x2C100000 (509 sectors)... Done.
Writing keymaster at 0x2C140000 (442 sectors)... Done.
Writing keymasterbak at 0x2C180000 (442 sectors)... Done.
Writing apdp at 0x2C800000 (26 sectors)... Done.
Erasing msadp... Done.
Erasing dpo... Done.
Writing DRIVER at 0x2C882000 (46476 sectors)... Done.
Erasing vbmeta... Done.
Erasing vbmetabak... Done.
Erasing reserve_exp2... Done.
Writing system at 0x32000000 (8292468 sectors)... Done.
Writing userdata at 0x145000000 (1713184 sectors)... Done.
Writing PrimaryGPT at 0x00000000 (34 sectors)... Done.
Writing BackupGPT at NUM_DISK_SECTORS-33. (33 sectors)... Done.
Restoring download flag... Done.
Set bootable drive to 0... Done.
Applying DISK patch... Done.
Flashing completed in 5 mins 46.320 s
MENGGUNAKAN MSM DOWNLOAD TOOL

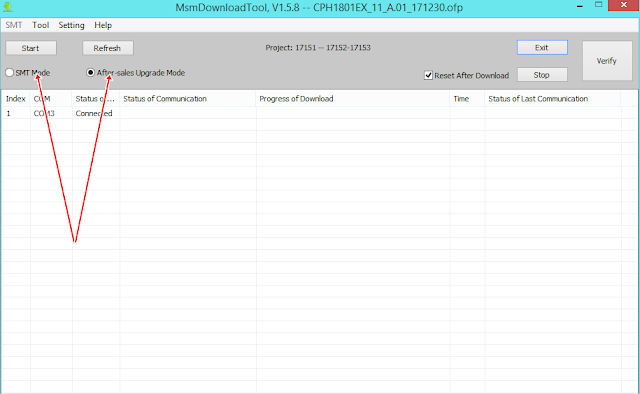

Bagi kawan-kawan yang belum memiliki Tool Box Seperti Ufi Box/Mrt Dongle,bisa menggunakan Msm Download Oppo A71.disana sudah kami jelaskan tentang langkah-langkah cara penggunaanya.dan perlu diketahui kembali,pada Msmdownlaod tool ini memiliki 2 fitur yaitu Smt Mode & After-Sales Upgrade Mode.Lihat Gambar
Caranya hampir sama dengan penjelasan diatas,yaitu smartphone harus dalam mode Port Qualcomm 9008.jika sudah silahkan Klik Start untuk memulai proses flashing,tunggu beberapa saat sampe selesai.
Sampe disini seharusnya sudah Muncrat ya ??? Sekian,pembahasan tentang Lupa Kunci-Pola-Frp/Akun Google Pada Oppo A71 CPH1801.Selamat mencoba dan semoga sukses
 |

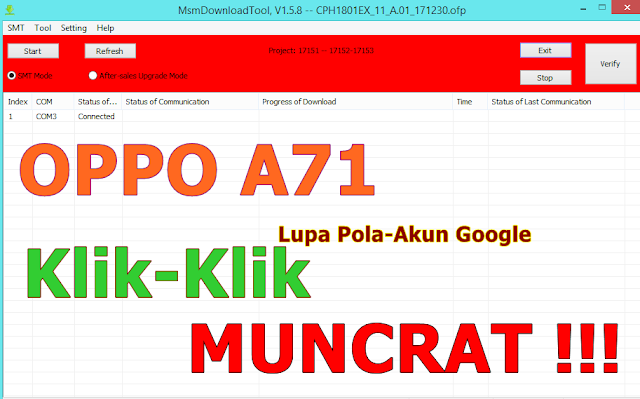

| MSM DOWNLOAD TOOL MODDED |
Lalu Bagaimana Cara Mengatasi ini??? Disini akan kami berikan tutorialnya,bagaimana cara langkah menghapus Kunci/Pola-Frp pada Oppo A71 ini.
Menggunakan UFI Box/Mrt Dongle,bisa juga menggunakan MsmDownloadTool yang sudah dilakukan Modifikasi,agar tool ini bisa bekerja dengan sebagai mana semestinya.
MENGGUNAKAN UFI BOX
Sebelum melangkah pada tutorial,siapkan dulu bahan-bahan dibawah ini
Perlu diketahui kembali,pada Oppo A71 ini memiliki 2 Variant,yaitu Oppo A71 CPH1717 Menggunakan Chipset Mediatek dan Oppo A71 CPH1801 Menggunakan Chipset Qualcomm,untuk permasalahan Lupa Kunci-Pola-Frp pada Oppo A71 Mediatek ini sudah kami Bahas pada Cara Buka Kunci Akun Google Oppo A71 Mediatek
Setelah semua sudah siap,buka UFI BOX Letakan Firmware pada Libray pada Android Tool Box C:\UFI\Android-ToolBox\Oppo\A71\CPH1801EX_11_A.14_181015 maka Ufi akan mengextract secara otomatis File Ofp tadi.Masuk pada Mode Edl.Tekan Volume Atas dan Bawah Secara serentak sambil ditahan,lalu Tuncep pada Port Komputer menggunakan Kabel USB.sampe disini smartphone sudah Terkoneksi Port Qualcomm 9008
Pada TAB Ufi Pilih Brand-Model Oppo A71,pilih Rawprogram0,karena usernya minta ingin dilakukan flashing,ya sudah klik Flash.Lihat Gambar
 |
| FLASHING MENGGUNAKAN UFI BOX |
IMAGE_VARIANT: JAADANAZA
OEM_IMAGE_VERSION: ubuntu-121-238
Sending firehose loader... Done.
Handshaking...
[VIP] Validated Image Programming is enabled.
Sending signed DigestTable [DigestsToSign_17151_persist_no_userdata_yes.bin.mbn]... Done.
Sending ping... Done.
Sending configurations...
TargetName: 8953
MemoryName: eMMC
Version: 1
Firehose configured.
Reading phone info... Done.
Processing rawprogram0.xml
Erasing userdata... Done.
Erasing PrimaryGPT... Done.
Erasing backupgpt... Done.
Backing up download flag... Done.
Writing modem at 0x00800000 (262144 sectors)... Done.
Writing sbl1 at 0x08802400 (756 sectors)... Done.
Writing sbl1bak at 0x08882400 (756 sectors)... Done.
Writing rpm at 0x08902400 (341 sectors)... Done.
Writing rpmbak at 0x08982400 (341 sectors)... Done.
Writing tz at 0x08A02400 (3031 sectors)... Done.
Writing tzbak at 0x08C02400 (3031 sectors)... Done.
Writing devcfg at 0x08E02400 (75 sectors)... Done.
Writing devcfgbak at 0x08E42400 (75 sectors)... Done.
Writing dsp at 0x08E82400 (32768 sectors)... Done.
Writing oppostanvbk at 0x0AB82400 (20480 sectors)... Done.
Writing LOGO at 0x0B582400 (31321 sectors)... Done.
Erasing DDR... Done.
Erasing splash... Done.
Writing aboot at 0x0E000000 (1241 sectors)... Done.
Writing abootbak at 0x0E100000 (1241 sectors)... Done.
Writing boot at 0x0E200000 (24667 sectors)... Done.
Writing recovery at 0x12200000 (35135 sectors)... Done.
Erasing devinfo... Done.
Writing cache at 0x16800000 (12497 sectors)... Done.
Erasing misc... Done.
Erasing keystore... Done.
Erasing config... Done.
Erasing limits... Done.
Erasing mota... Done.
Erasing dip... Done.
Writing mdtp at 0x29980000 (26853 sectors)... Done.
Erasing syscfg... Done.
Erasing mcfg... Done.
Writing lksecapp at 0x2C000000 (113 sectors)... Done.
Writing lksecappbak at 0x2C020000 (113 sectors)... Done.
Writing cmnlib at 0x2C040000 (402 sectors)... Done.
Writing cmnlibbak at 0x2C080000 (402 sectors)... Done.
Writing cmnlib64 at 0x2C0C0000 (509 sectors)... Done.
Writing cmnlib64bak at 0x2C100000 (509 sectors)... Done.
Writing keymaster at 0x2C140000 (442 sectors)... Done.
Writing keymasterbak at 0x2C180000 (442 sectors)... Done.
Writing apdp at 0x2C800000 (26 sectors)... Done.
Erasing msadp... Done.
Erasing dpo... Done.
Writing DRIVER at 0x2C882000 (46476 sectors)... Done.
Erasing vbmeta... Done.
Erasing vbmetabak... Done.
Erasing reserve_exp2... Done.
Writing system at 0x32000000 (8292468 sectors)... Done.
Writing userdata at 0x145000000 (1713184 sectors)... Done.
Writing PrimaryGPT at 0x00000000 (34 sectors)... Done.
Writing BackupGPT at NUM_DISK_SECTORS-33. (33 sectors)... Done.
Restoring download flag... Done.
Set bootable drive to 0... Done.
Applying DISK patch... Done.
Flashing completed in 5 mins 46.320 s
MENGGUNAKAN MSM DOWNLOAD TOOL
Bagi kawan-kawan yang belum memiliki Tool Box Seperti Ufi Box/Mrt Dongle,bisa menggunakan Msm Download Oppo A71.disana sudah kami jelaskan tentang langkah-langkah cara penggunaanya.dan perlu diketahui kembali,pada Msmdownlaod tool ini memiliki 2 fitur yaitu Smt Mode & After-Sales Upgrade Mode.Lihat Gambar
 |
| OPPO MSM DOWNLOAD TOOL NEW |
 |
| OPPO A71 CPH1801 |
